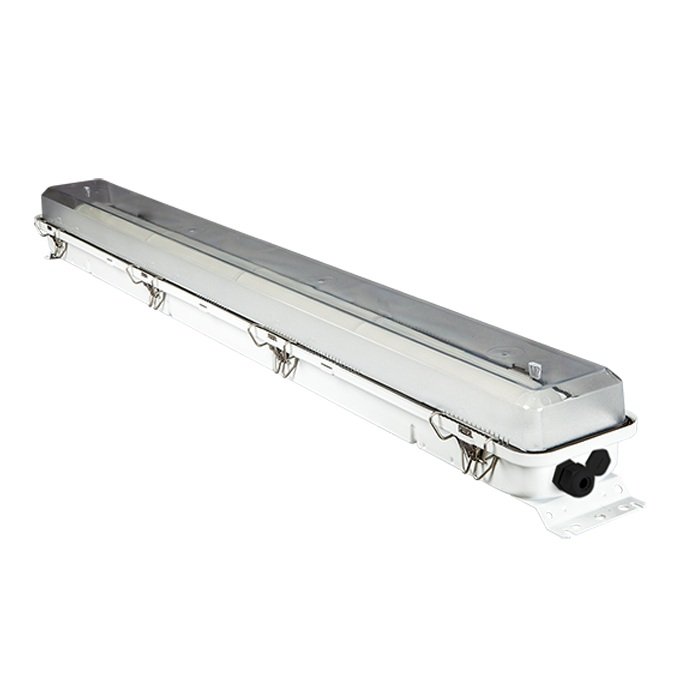

GLAMOX MIX S LED Steel

from €445.40
Payment currently unavailable

The innovative LED Zone 2 lighting fixtures are applicable for a wide range of different areas, in on - and offshore installations. MIXS with housing in deep drawn stainless steel (AISI 316) for outdoor marine enviroment. They are designed to meet maritime requirements and to save energy and maintenance costs due to the long lifetime.

Power:

The innovative LED Zone 2 lighting fixtures are applicable for a wide range of different areas, in on - and offshore installations. MIXS with housing in deep drawn stainless steel (AISI 316) for outdoor marine enviroment. They are designed to meet maritime requirements and to save energy and maintenance costs due to the long lifetime.

• 2Ex nA II T4..T3 Gc / DIP A22 Ta81°C

• Temperature: -30°C … +45°C

• LED

• IP67

The diffuser is made of impact-proof polycarbonate (PC) with spring clips in acid-proof steel. MIX has a hinged gear tray with quick connector to facilitate maintenance.

TECHNICAL DETAILS

HOUSING COLOR AND MATERIALS:

• Housing in acid-proof steel with white epoxy/polyester powder coated finish. Alternatively in unpainted acid-proof steel.
• The diffuser is made of impact-proof polycarbonate (PC) with moulded silicone gasket and spring clips in acid-proof steel.

MOUNTING:

• The luminaire is supplied with fixed end brackets, triangle suspension or 2 x M8 hood nuts. Bracket for horizontal wire and revolvable bracket to be mounted on the fixed end bracket. M8 rod -, tube -, pole -, cable bridge -, side - and vibration suspension to be mounted through the M8 hood nut. M8 hood nuts with flexible CC and other special suspensions on request.

LIGHT SOURCE/OPTICS:

• LED 2500 - 7500 lumen out
• Colour temperature 4000 K, CRI Ra 80, MacAdams 3

CONNECTION:

• 5 pole 6 mm² screw terminal block. Variants with 5 x 2,5 mm² through wiring.



BALLAST AND OTHER ELECTRONICS:

• Electronic ballast (HF): 220-240V/50-60Hz.
• Current: 0.18A.
• Power factor λ: 0.96.
• Parallel lamp circuit.

• Electromagnetic ballast (F): 230V/50Hz
• Current: 0.43A.
• Power factor λ: 0.49.
• Series lamp circuit.

• Components connection to the ballast: stranded wire 1x1.0 mm2.
• G13 lamp holder: vibration-resistant or standard.
• Fuse: 250V, 2A (only for the version with a battery).
• Rechargeable battery: NiCd, 4.8V, 4.0Ah.
• Electrionic ballast option(HF): 110-127V/0-60Hz on request.
