• Halogen
• Temperature down to -40°С
• Visibility up to 2 366 meters
• Distant control up to 5000m
Dimensions:
SL40 R5 SH310 230V 1000W C 330mm x 470mm x 870mm
SL40 R5 SH470 230V 2000W C 360mm x 615mm x 1040mm

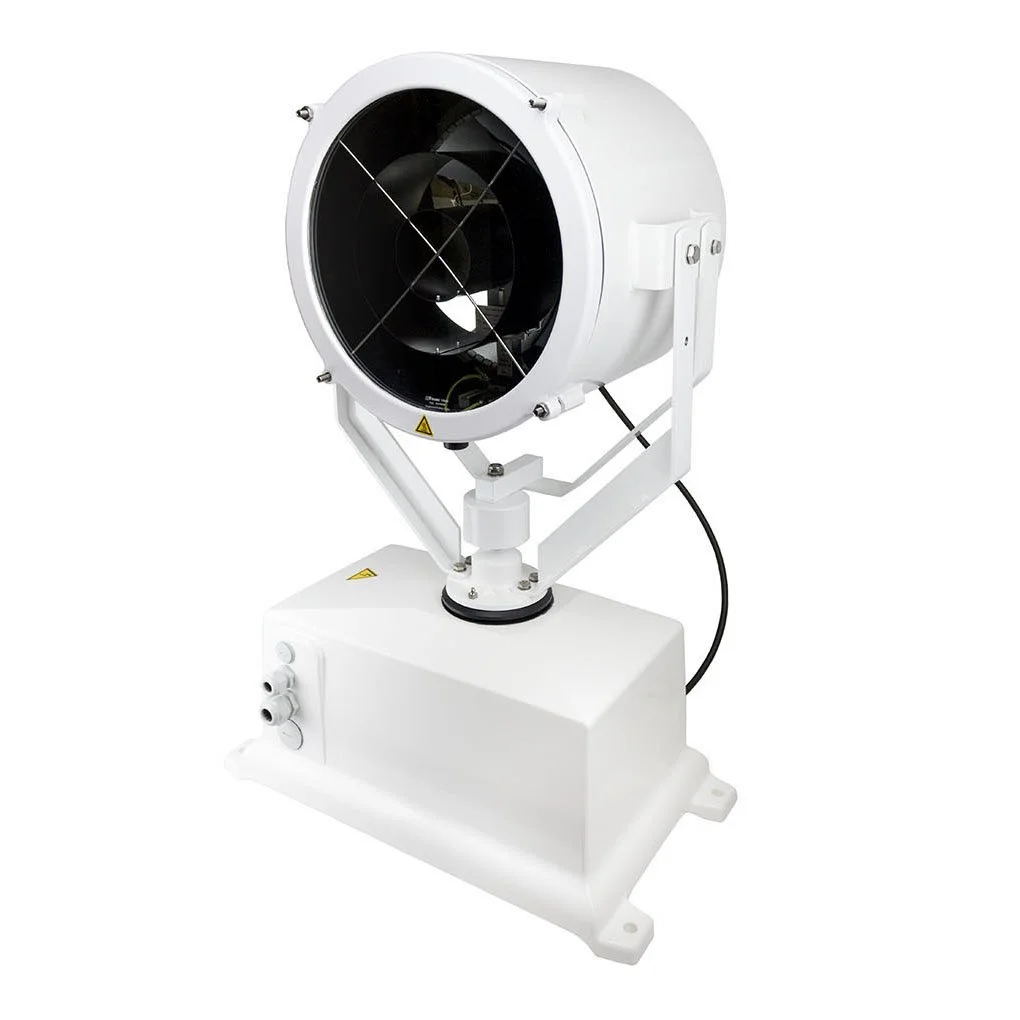

The Searchlights are especially equipped for vessels with high demand of light output or operating in harsh winter and ice conditions such as tugs, icebreakers, offshore supply vessels or ice-classed vessels. The SL40 R5 Searchlights provide reliable lighting in a wide range of watt sizes and different voltages. They are also designed for arctic environments with temperatures down to -40 °C.
The SL40 R5 is operated by use of a control panel(s), with joystick and buttons, and are simple to install and operate.
TECHNICAL DETAILS
LIGHT SOURCE:
• Halogen lamps up to 2000W.
INSTALLATION:
• Easy mounting direct to deck or on pedestal. Distant control
HOUSING:
• High quality seawater resistant aluminium housing finished in white polyester coating. Other RAL colours for housing on request..
OPTICS:
• Adjustable beam on most versions, with a durable high polished aluminium reflector, specially designed for halogen lamps
CONNECTION:

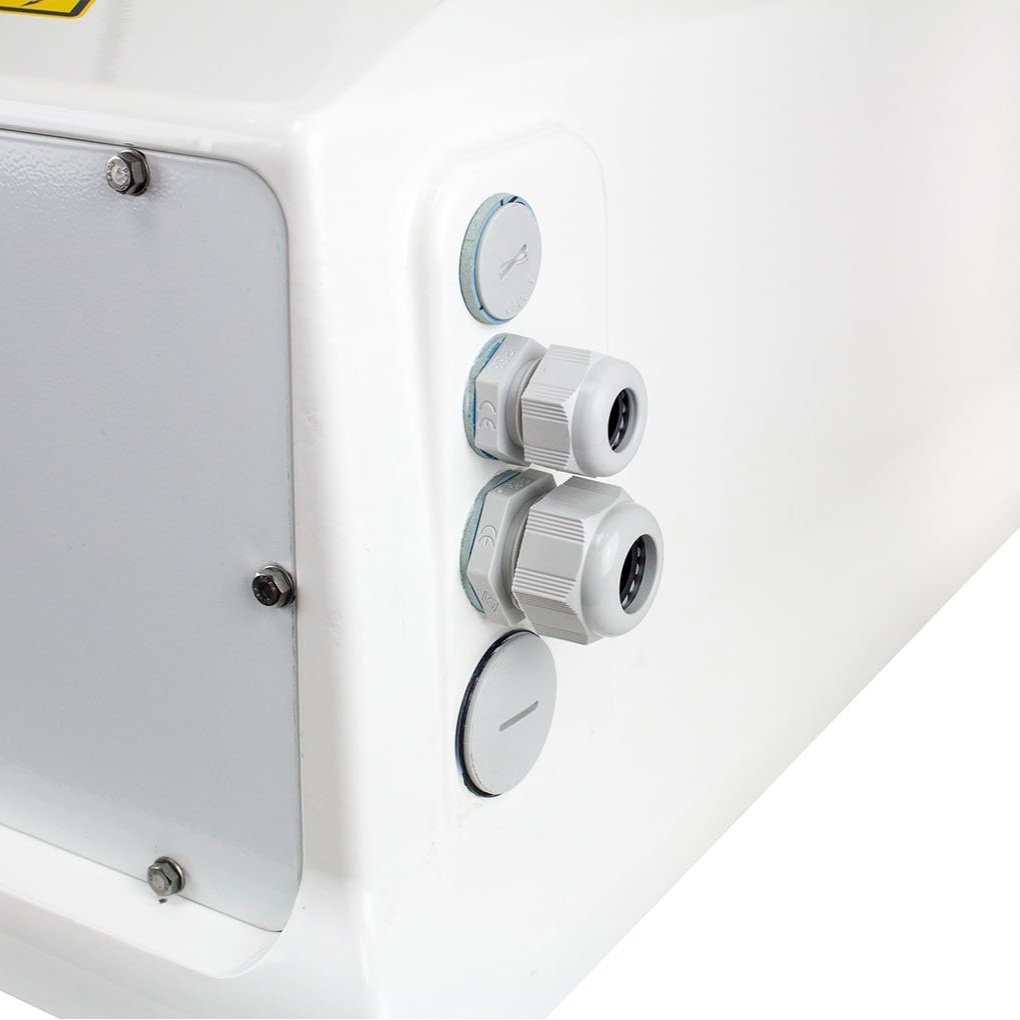

• Connecting with cable glands in polyamide. Up to 5000 meters cable between main panel and searchlight.
EXTRA:
• Special options on request:
• Top or bottom mounting.
• Different colors.
• Increased operating time.
