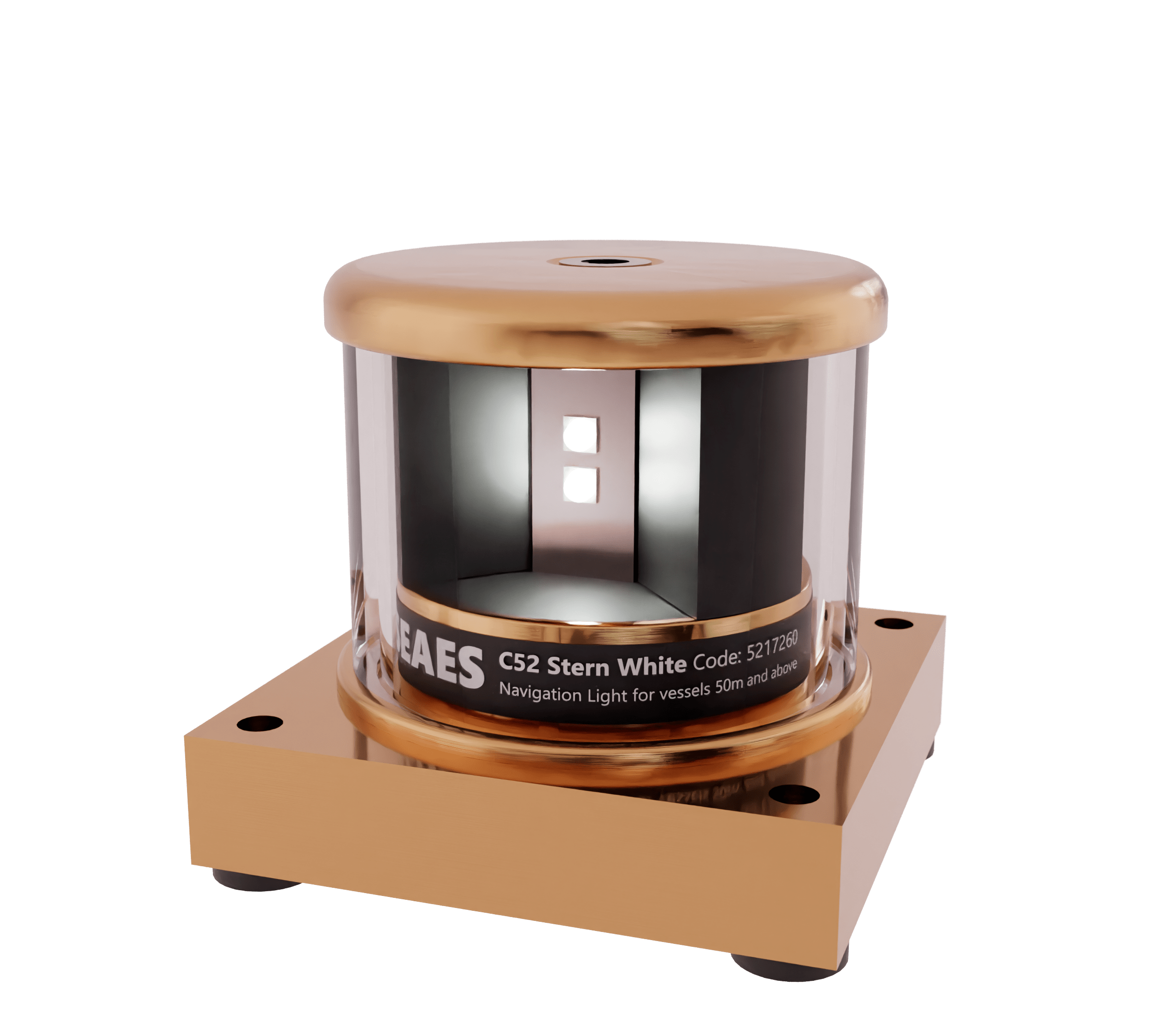

SEAES C52 BR Square Double
Seaes C52 Series Double LED Navigation Lanterns (NL) are intended for use on ships with length of 50 meters or more. Light visibility is: masthead white – 6 nautical miles, a maneuvering light – 5 nautical miles, all other lights – 3 nautical miles. Double LED modules are used as a light source with an operating voltage of 2 × 24 V and low power consumption about 3.5 W.
Seaes C52 Series Double LED Navigation Lanterns (NL) are intended for use on ships with length of 50 meters or more. Light visibility is: masthead white – 6 nautical miles, a maneuvering light – 5 nautical miles, all other lights – 3 nautical miles. Double LED modules are used as a light source with an operating voltage of 2 × 24 V and low power consumption about 3.5 W.
Seaes C52 Series Double LED Navigation Lanterns (NL) are intended for use on ships with length of 50 meters or more. Light visibility is: masthead white – 6 nautical miles, a maneuvering light – 5 nautical miles, all other lights – 3 nautical miles. Double LED modules are used as a light source with an operating voltage of 2 × 24 V and low power consumption about 3.5 W.
• For vessels of 50 or more meters
• Visibility 6nm / 3nm
• LED
• IP67
• 24V
• Double
The lanterns of the main and standby circuits are integrated into a single body made of marine aluminum alloy. The C52 series lanterns are based on the new technology of using color LEDs with life time of up to 120,000 hours and do not require the use of colored lenses, thus making the lanterns more user-friendly. C52 body is available in black (standard), white and brass. Small size of the lanterns greatly simplifies installation on the vessel and masts.
FEATURED PRODUCTS
RELATED PRODUCTS
TECHNICAL DETAILS
LIGHT SOURCE:
• High-intensity replaceable double LED matrix.
• The upper LEDs are the main ones, the lower LEDs are the reserve ones.
• LEDs of various colors:
White, red, green, yellow, or blue.
INSTALLATION:
• 2 studs for standard base.
• 4 holes for a square base.
LENS:
• Impact-resistant borosilicate glass.
VISIBILITY:
• 6 nautical miles – masthead lights,
• 5 nautical miles – maneuvering light,
• 3 nautical miles – side/stern/all-round lights.
LED MODULE LIFE TIME:
• Up to 120,000 hours
BODY COLOR AND MATERIAL:
• Black anodized aluminum alloy. Other components are made of corrosion-resistant materials. Seawater-resistant body. Stainless steel bolts.
APPLICATION:
• For vessels with length of 50 m or more. To identify various types of vessels and their position relative to the vessel heading in the dark.
