SELCAST 4700 Exit
Selcast 4700 LED luminaire is intended for surface installation on open decks and in the interior of marine vessels – for emergency lighting, suitable for small vessels and boats.
Selcast 4700 LED luminaire is intended for surface installation on open decks and in the interior of marine vessels – for emergency lighting, suitable for small vessels and boats.
Selcast 4700 LED luminaire is intended for surface installation on open decks and in the interior of marine vessels – for emergency lighting, suitable for small vessels and boats.
• 110/240 V or 24 V
• Lumination flux: up to 3000 lm
• LED
• IP67
• Temperature: -25°С ... + 45°С
High-quality components of luminaires: powder coated body and pressure frame made of marine aluminum alloy, opal or semitransparent globe made of impact-resistant polycarbonate, stainless steel fixing screws, vibration-proof marine grade LED module. Special design of Selcast 4700 fixtures – versions: for high temperatures up to +70 °С, with colored globes, with a stainless steel protective grill, the individual icons “EXIT”, “IRON”, etc.
TECHNICAL DETAILS
VOLTAGE:
• 220–240 V, 50–60 Hz
• 12–24 V, 0 Hz
POWER AND LUMINOUS FLUX:
• 1 × 3 W – 230 lm
• 1 × 6 W – 490 lm
COLOR TEMPERATURE:
• 4000 K; CRI > 80; MacAdam – 3
TEMPERATURE AND IP:
• –25 ºC ... +45 ºC; IP67
LED LIFE TIME:
• 50,000 hours
CONNECTION:
• 2 × 4.0 mm² + 1 × 2.5 mm² (standard)
LENS:
• Opal polycarbonate – OP
• Semitransparent polycarbonate – PC

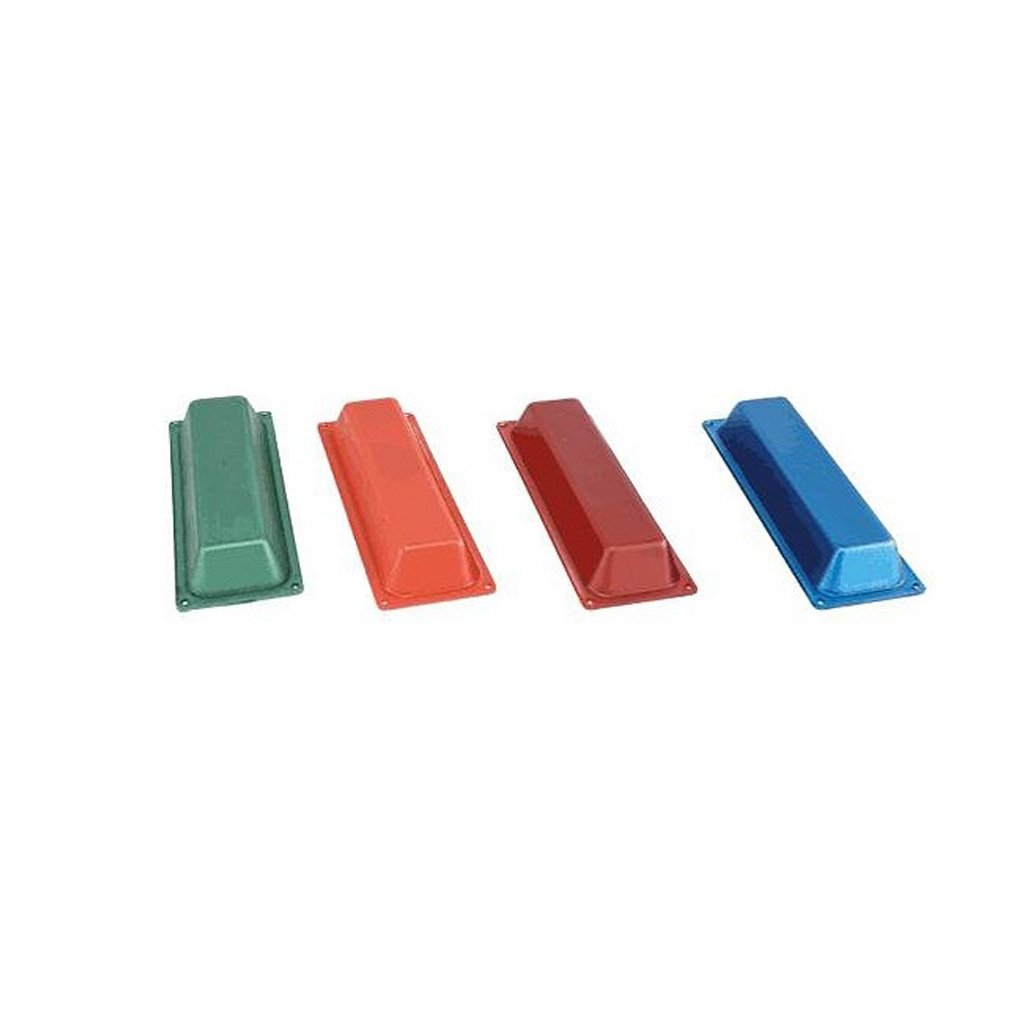

• Red, green or blue light filter – OPP (RED, GREEN, BLUE)
CABLE GLANDS:
• PG16 aluminum entries for Ø 11–14 mm cable
BODY:
• Painted marine aluminum alloy
• Stainless steel protective grill – G
