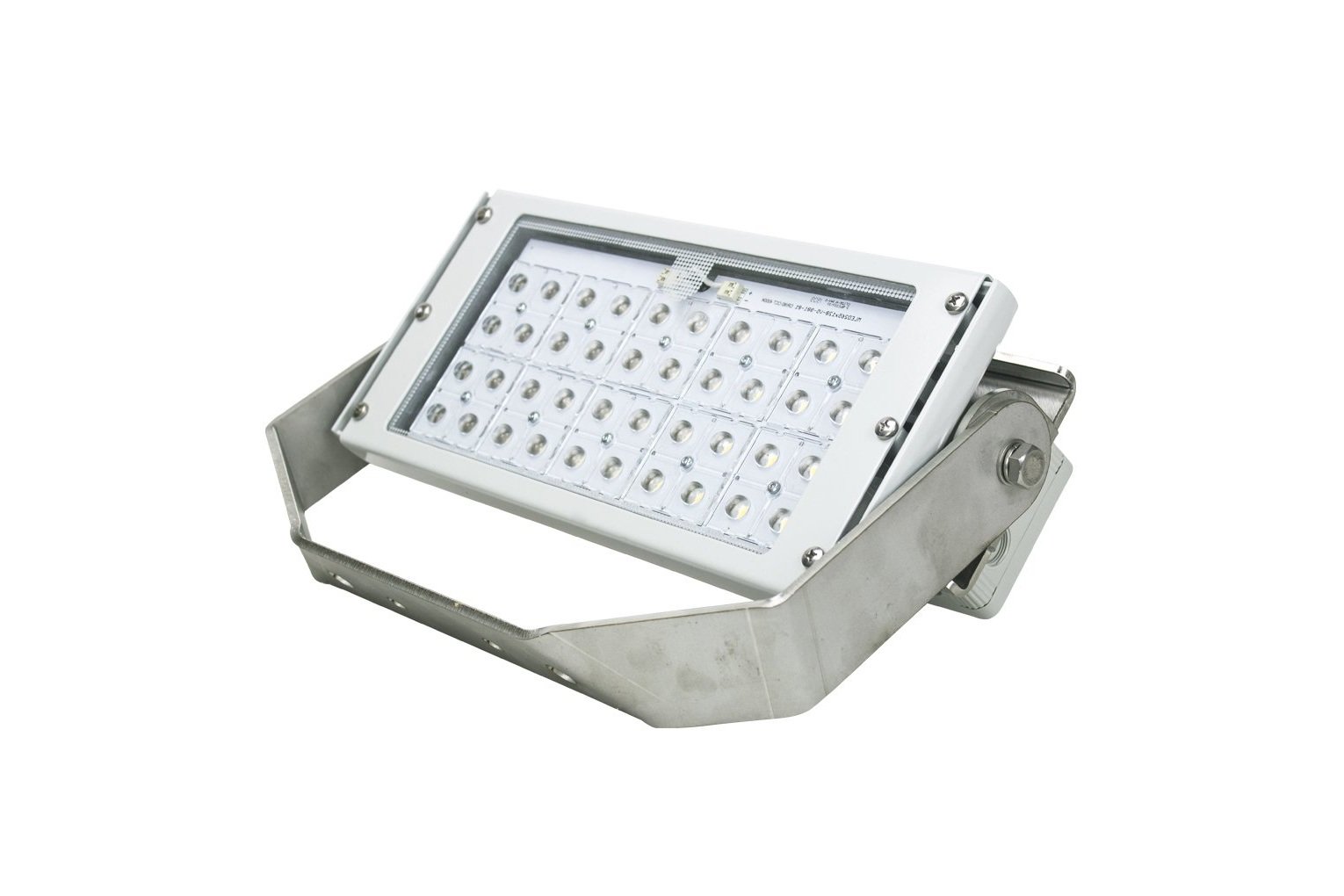

Remontowa STP20 LED
The Remontowa STP20 LED floodlight is designed for installation on the open decks of marine vessels - for general and/or emergency lighting, suitable for lighting up the working area of rescue vessels and trawlers. Versions with a luminous flux of 7700, 16000 and 24000 lumens are available.
The Remontowa STP20 LED floodlight is designed for installation on the open decks of marine vessels - for general and/or emergency lighting, suitable for lighting up the working area of rescue vessels and trawlers. Versions with a luminous flux of 7700, 16000 and 24000 lumens are available.
The Remontowa STP20 LED floodlight is designed for installation on the open decks of marine vessels - for general and/or emergency lighting, suitable for lighting up the working area of rescue vessels and trawlers. Versions with a luminous flux of 7700, 16000 and 24000 lumens are available.
• 110/240V or 24V
• Temperature: -50°С...+45°С, IP66
• LED
• Luminous flux up to 24000 lm
Dimensions:
STP20 MLED1/0467/8/740/W 1x50W 382mm x 141mm x 264mm
STP20 MLED2/0927/8/740/W 2x50W 356mm x 184mm x 403mm
STP20 MLED3/1397/8/740/W 3x50w 515mm x 205mm x 436mm
STP20 MLED1/064/4/740/W 1x50W 24V 382mm x 141mm x 264mm
High-quality components of the floodlights: powder-painted marine aluminum alloy housing, stainless steel frame and bracket, impact-resistant tempered glass, vibration-resistant marine LED module. It can be equipped with a low-temperature driver - the Arctic version.
TECHNICAL DETAILS
VOLTAGE AND FREQUENCY:
• 110-240V, 50-60Hz
• 24V, 0Hz
POWER AND LUMINOUS FLUX:
• 50 W - 7700 lm
• 2х50 W - 16000 lm
• 3х50 W - 24000 lm
LED MODULES SERVICE LIFE:
• 50,000 hours.
TEMPERATURE AND IP:
• -40ºC...+45ºC; IP66
• -50ºC...+45ºC (for Arctic version)
CONNECTION:
• 3x4.0 mm2 (standard)
• 3 x 10.0 mm2 (for 24V versions)
BODY:
• Painted marine aluminum alloy
• Stainless steel
