• 110/240 V or 24 V
• Lumination flux: up to 8000 lm
• LED
• IP30
• Integrated rechargeable battery lasting for 3 hours

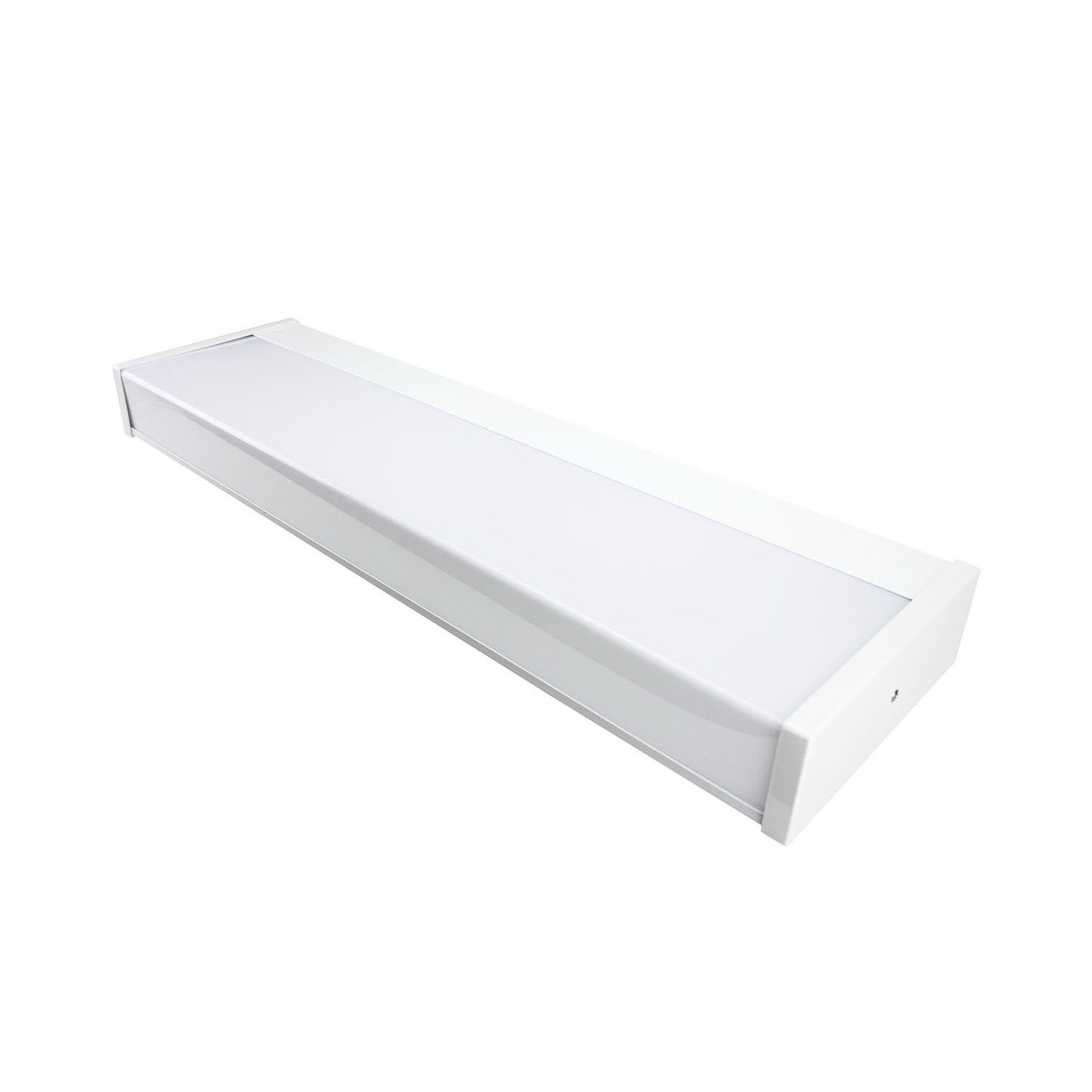

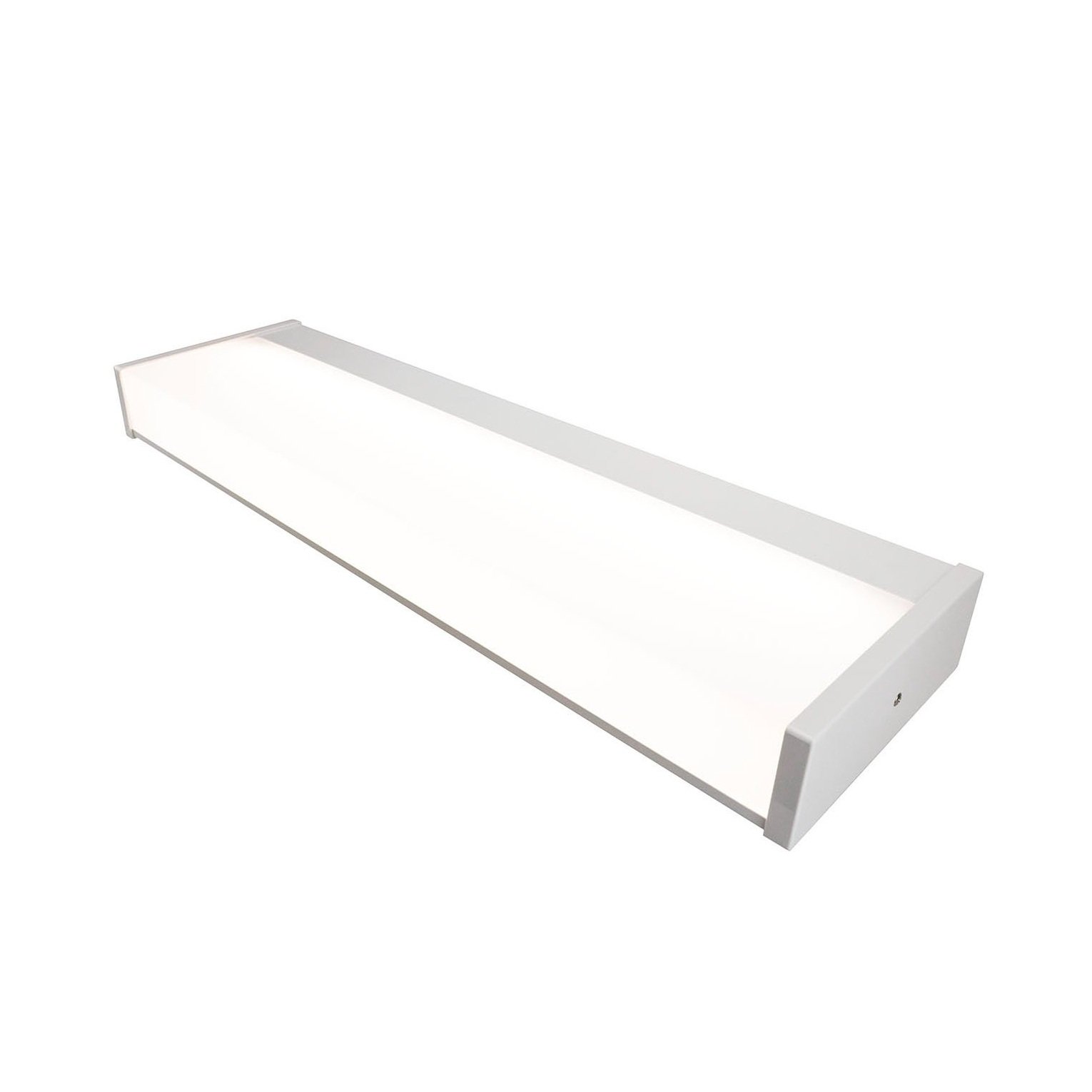

The components of the luminaires are made of high-quality materials: powder-coated body made of galvanized steel, impact-resistant globe and end caps made of polycarbonate, vibration-proof marine grade LED matrix. Intended for general and/or emergency lighting of passageways. It can be used in areas with low ceilings. Version with integrated switch can be used as a table luminaire.
TECHNICAL DETAILS
VOLTAGE:
• 220–240 V, 50–60 Hz
• 12–24 V, 0 Hz
POWER AND LUMINOUS FLUX:
• 1 × 13 W – 1424 lm
• 1 × 17 W – 2064 lm
• 2 × 13 W – 2848 lm
• 2 × 17 W – 4128 lm
• 2 × 7 W – 1424 lm
• 4 × 7 W – 2848 lm
COLOR TEMPERATURE:
• 4000 K; CRI > 80; MacAdam – 3
TEMPERATURE AND IP:
• 0ºC...+45ºC; IP30
LED LIFE TIME:
• 50,000 hours
BODY:
• Painted galvanized steel
LENS:
• Opal polycarbonate – PC
CONNECTION:
• 3 × 2.5 mm² (standard)
• 5 × 2.5 mm² (for versions with emergency lighting kit, secondary lighting circuit and for versions with brightness control)
CABLE GLANDS:
• Membrane grommets for Ø 7–14 mm cable
MOUNTING:
• Four mounting holes Ø 5.5 mm on the back wall of the luminaire
