SEAES P35

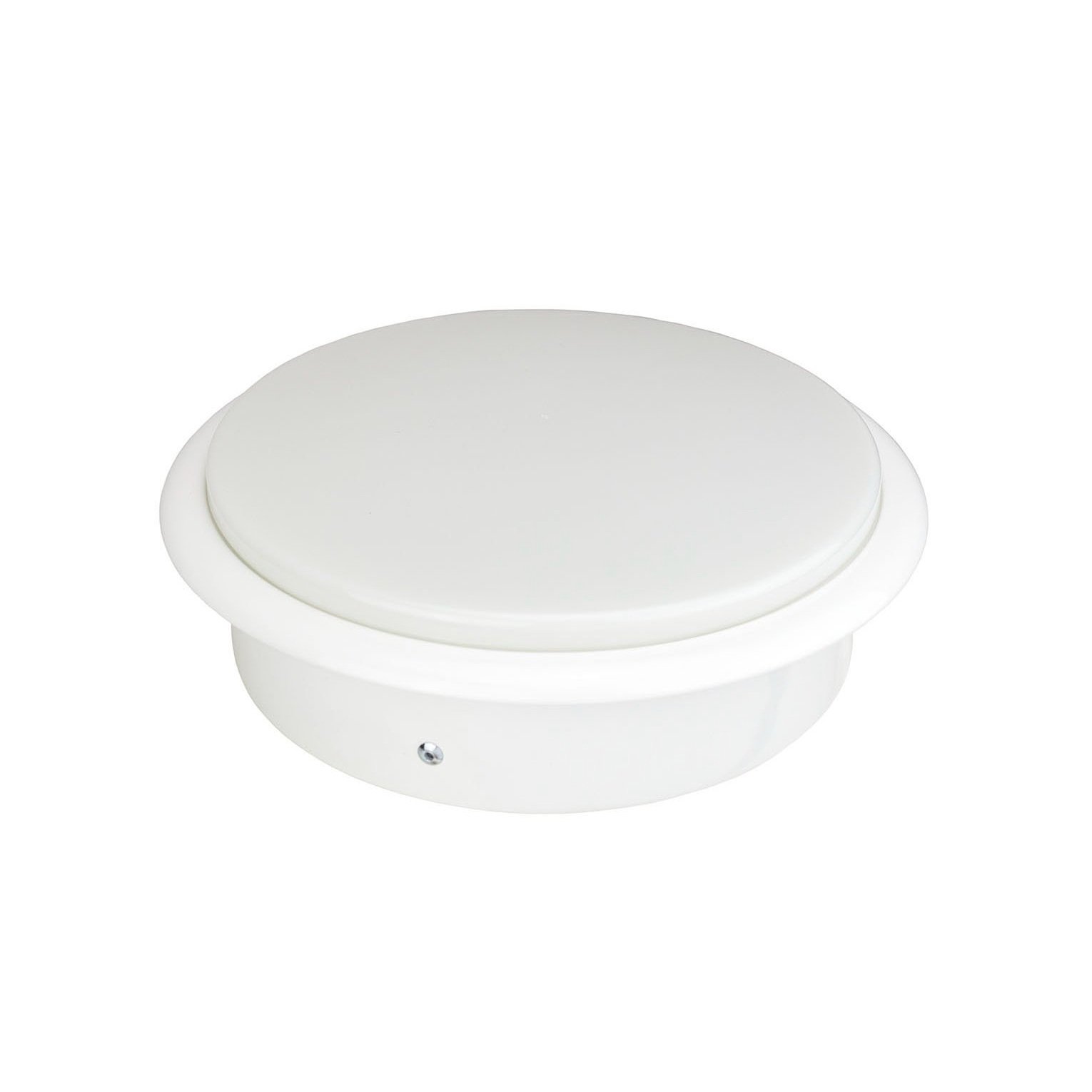

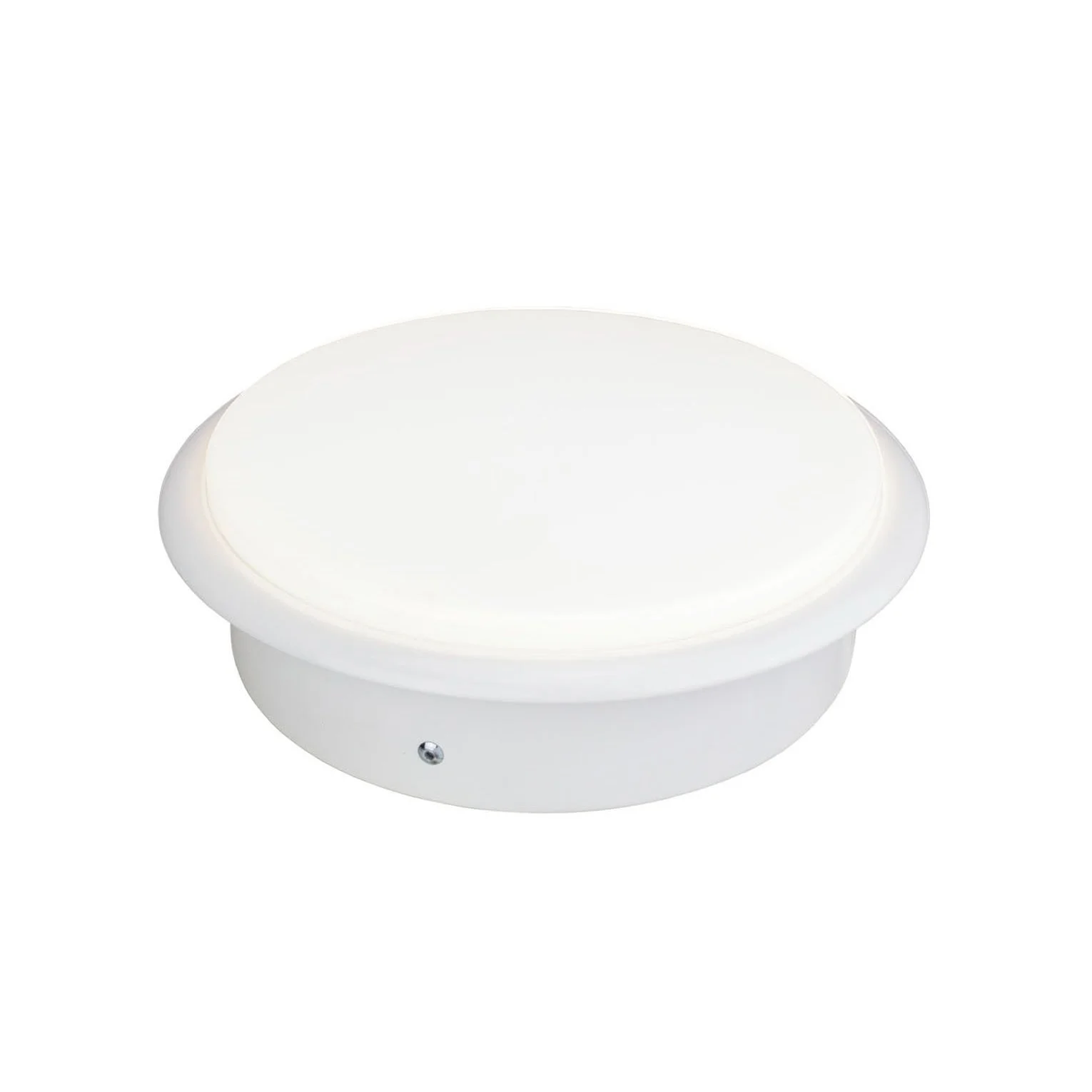

The Seaes P35 Series LED luminaire is intended for integrated installation in various areas of marine vessels.
The Seaes P35 Series LED luminaire is intended for integrated installation in various areas of marine vessels.
The Seaes P35 Series LED luminaire is intended for integrated installation in various areas of marine vessels.
• 110/240 V or 24 V
• Lumination flux: up to 1250 lm
• LED
• IP44
• Integrated rechargeable battery lasting for 3 hours
The components of the luminaires are made of high-quality materials: powder coated body and ring made of galvanized steel, impact-resistant globe, vibration-proof marine grade LED module. Intended for general and/or emergency lighting of vessel spaces.
TECHNICAL DETAILS
VOLTAGE:
• 220–240 V, 50–60 Hz
• 12–24 V, 0 Hz
POWER AND LUMINOUS FLUX:
• 1 × 8 W – 630 lm
• 1 × 16 W – 1250 lm
• 2 × 5 W – 990 lm
• 2 × 7 W – 1250 lm
COLOR TEMPERATURE:
• 4000 K; CRI > 80; MacAdam – 3
TEMPERATURE AND IP:
• 0ºC...+45ºC; IP44
LED LIFE TIME:
• 50,000 hours
BODY:
• Painted galvanized steel
LENS:
• Opal polycarbonate – OP
CONNECTION:
• 3 × 2.5 mm² (standard)
• 5 × 2.5 mm² (for versions with emergency lighting kit, secondary lighting circuit and for versions with brightness control)
CABLE GLANDS:
• Membrane grommet for Ø 7–14 mm cable
MOUNTING:
Eight mounting holes Ø 4.2 mm located around the circumference Ø 234 mm every 45°.
